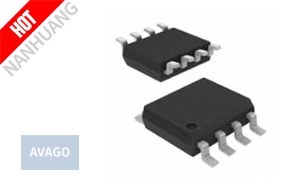

HCPL-0452#560 Images
- Manufacturer: Avago Technologies (Broadcom)
- Category: Isolators~Optoisolators - Transistor, Photovoltaic Output Package/Case: 8-SOIC (0.154, 3.90mm Width)
- Description: OPTOISOLATOR 3.75KV TRANS 8-SO
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
HCPL-0452#560 Specifications:
- MfrPart.: HCPL-0452#560
- Mfr: Broadcom Limited (Avago Technologies)
- Description: OPTOISOLATOR 3.75KV TRANS 8-SO
- Product Category: Isolators~Optoisolators - Transistor, Photovoltaic Output
- Package: Tape & Reel (TR)
- Series: -
- PartStatus: Discontinued at
- NumberofChannels: 1
- Voltage-Isolation: 3750Vrms
- CurrentTransferRatio(Min): 15% @ 16mA
- CurrentTransferRatio(Max): -
- TurnOn/TurnOffTime(Typ): 1µs, 1µs (Max)
- Rise/FallTime(Typ): -
- InputType: DC
- OutputType: Transistor
- Voltage-Output(Max): 20V
- Current-Output/Channel: 8mA
- Voltage-Forward(Vf)(Typ): 1.5V
- Current-DCForward(If)(Max): 25 mA
- VceSaturation(Max): -
- OperatingTemperature: -55°C ~ 100°C
- MountingType: Surface Mount
- Package/Case: 8-SOIC (0.154, 3.90mm Width)
- HCPL-0452#560 AVAGO (Broadcom), OPTOISOLATOR 3.75KV TRANS 8-SO, Isolators~Optoisolators - Transistor, Photovoltaic Output
